Module Overview

pccx-lab is a Tauri 2 desktop app that bundles four strictly-separated Rust / TypeScript modules into a single verification + profiling IDE for the pccx NPU architecture.

Module	Language	Depends on	Role
core/	Rust	—	.pccx format, trace analysis, roofline + bottleneck + synth-report parsers
ui/	TypeScript (React + Tauri)	core/ (via IPC)	shell, visualisations, report dashboard
uvm_bridge/	Rust + DPI-C	core/	SystemVerilog / UVM ↔ core/ boundary
ai_copilot/	Rust	core/ trace types only	LLM + UVM-strategy generator wrappers

Dependencies flow inwards only. core/ must never import a UI or framework crate; ui/ only uses core/’s public API via the Tauri command bridge.

Shell at a glance

The default layout mirrors a modern EDA IDE (think VTune / Nsight): a top menu bar, a tool ribbon, a tab strip, the active work panel, and two dockable side panels (Live Telemetry + AI Copilot).

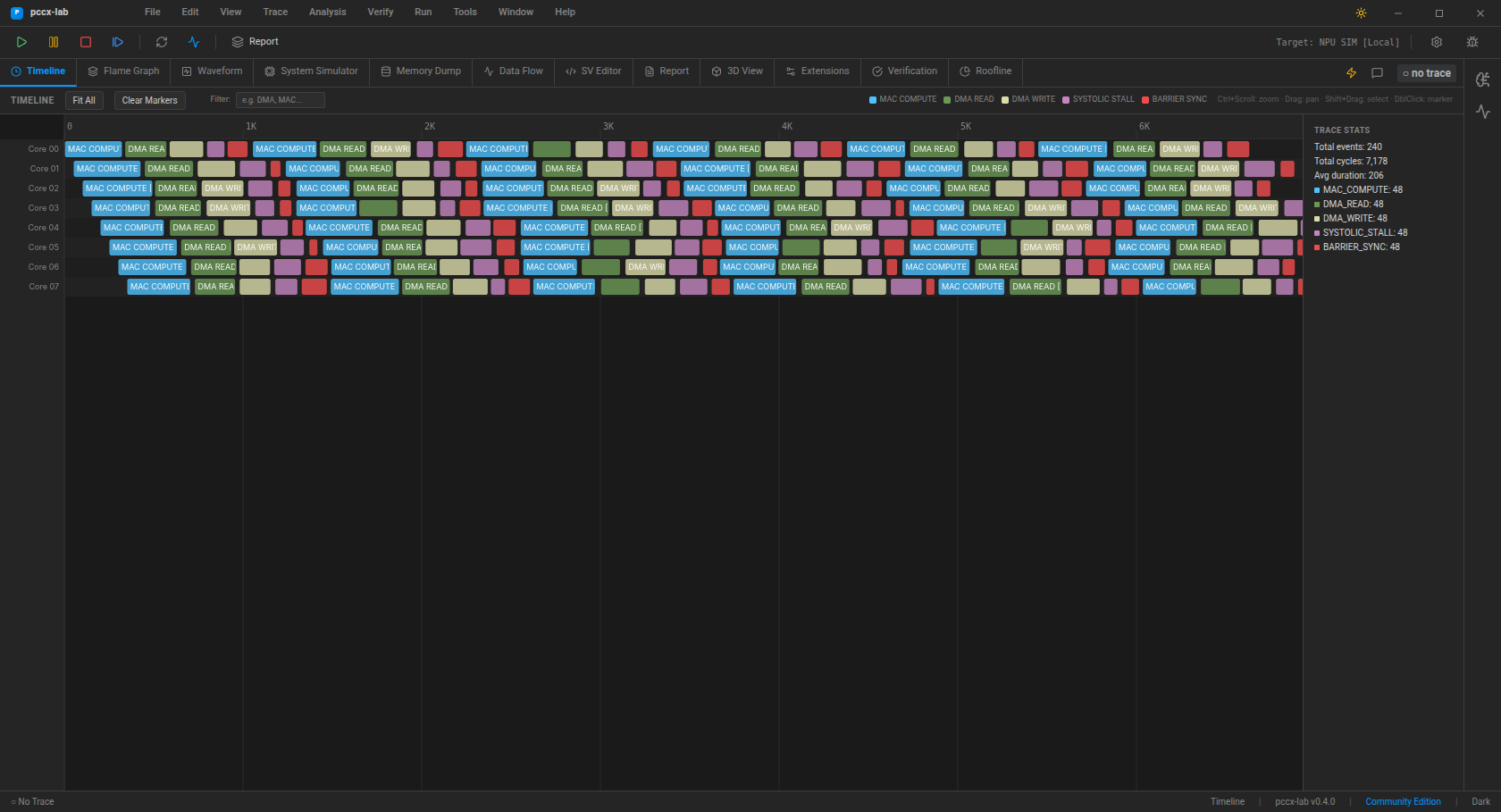

The capture above shows the Timeline tab. Each swim lane is a core; events are colour-coded by type (MAC_COMPUTE / DMA_READ / DMA_WRITE / SYSTOLIC_STALL / BARRIER_SYNC). The right-hand stats panel is driven by the Rust core_utilisation IPC.

Main tabs (2026-04-20)

Tab	Component	Hot-key	Purpose
Timeline	Timeline.tsx	—	Swim-lane event timeline over cycles
Flame Graph	FlameGraph.tsx	—	Hierarchical stall / compute stacks
Waveform	WaveformViewer.tsx	—	Signal waveforms (future VCD sink)
System Simulator	HardwareVisualizer.tsx	—	3D systolic array live view
Memory Dump	MemoryDump.tsx	—	Paginated hex view of the flat trace buffer

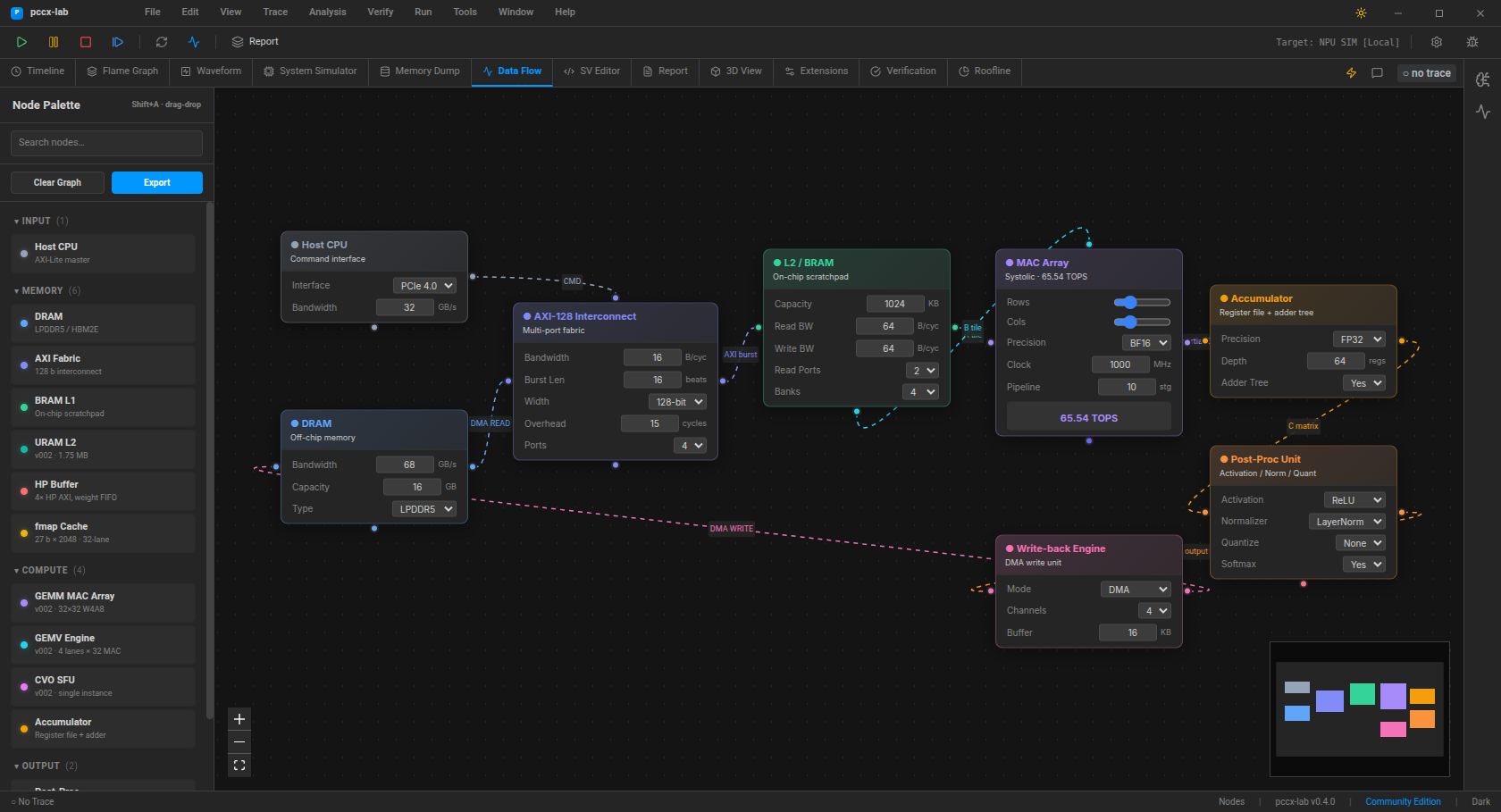

Data Flow	NodeEditor.tsx	Shift+A	Blender-grade block-diagram canvas
SV Editor	CodeEditor.tsx	—	SystemVerilog editor + AI inline gen
Report	ReportBuilder.tsx	—	Enterprise report composer
Verification	VerificationSuite.tsx	—	4-card pccx-FPGA verification dashboard
Roofline	Roofline.tsx	—	ECharts roofline chart

Verification dashboard (pccx-FPGA bridge)

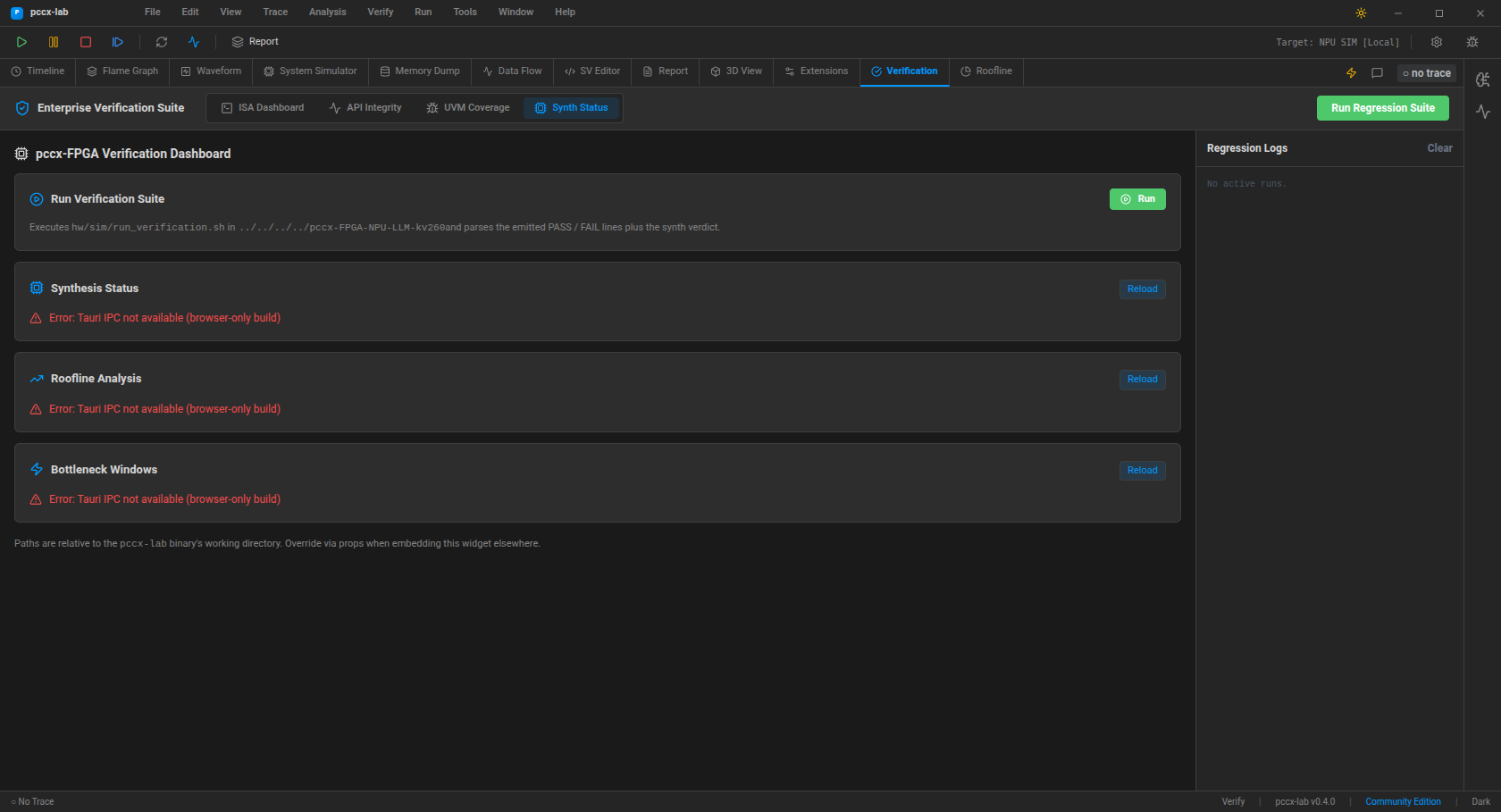

The Verification → Synth Status sub-tab is the one-stop dashboard for pccx-FPGA RTL verification. Four cards stack top-to-bottom:

1. Run Verification Suite — shells out to hw/sim/run_verification.sh in the sibling pccx-FPGA repo and returns the per-testbench verdict table. Each row has an Open button that loads the generated .pccx into the Timeline via the trace-loaded event bus.

2. Synthesis Status — parses hw/build/reports/{utilization,timing_summary}_post_synth.rpt and surfaces LUT / FF / RAMB / URAM / DSP counts plus the WNS timing verdict.

3. Roofline Analysis — arithmetic intensity, achieved GOPS, compute-vs-memory-bound verdict, computed on the currently-cached trace.

4. Bottleneck Windows — fixed-window DMA / stall hotspot list with share %, event count, and core coverage (normalised).

See Verification Workflow for the end-to-end flow.

Tauri IPC surface (17 commands)

Command	Purpose
load_pccx(path)	Cache a trace + emit trace-loaded
fetch_trace_payload()	Flat 24-B/event buffer for the Timeline
get_core_utilisation()	Per-core MAC-utilisation stats
compress_trace_context()	LLM-prompt-sized trace summary
generate_uvm_sequence_cmd(strategy)	SV UVM sequence stub
list_uvm_strategies()	Enumerate the 5 built-in strategies
generate_report()	Legacy enterprise report
generate_markdown_report(util_path, timing_path)	Markdown summary of trace + synth
analyze_roofline()	Arithmetic intensity + bound verdict
detect_bottlenecks(window_cycles?, threshold?)	Hotspot window list
load_synth_report(util_path, timing_path)	Parsed Vivado synth report
run_verification(repo_path)	Run the full pccx-FPGA suite
list_pccx_traces(repo_path)	Enumerate hw/sim/work/ traces
validate_license(token)	Tier + licensee + expiry
get_license_info()	Compiled-in tier
get_extensions()	Plugin catalogue (local LLM, VCD exporter, …)

Native-window automation

Everything above runs in a real webkit2gtk webview driven by tauri-driver — the same E2E harness that CI uses. The Verification Workflow page spells out the selenium + tauri-driver setup; 19 pytest cases currently exercise the whole IPC surface end-to-end.
